VideoSecu TV Wall Mount for 39"-70" Sony LG Panasonic Vizio Sharp LED LCD Plasma Heavy Duty Full Motion W2M

<li>Heavy duty sturdy mount, VESA mounting holes 684x400/600x400/400x400/400x300/300x300/200x200mm</li><li>Post-installation level adjustment<br></li><li>Load capacity 165lbs<br></li><li>Extend 25"<br></li><li>Swivel 160 degree<br></li><li> Tilt +/-15 degree</li>

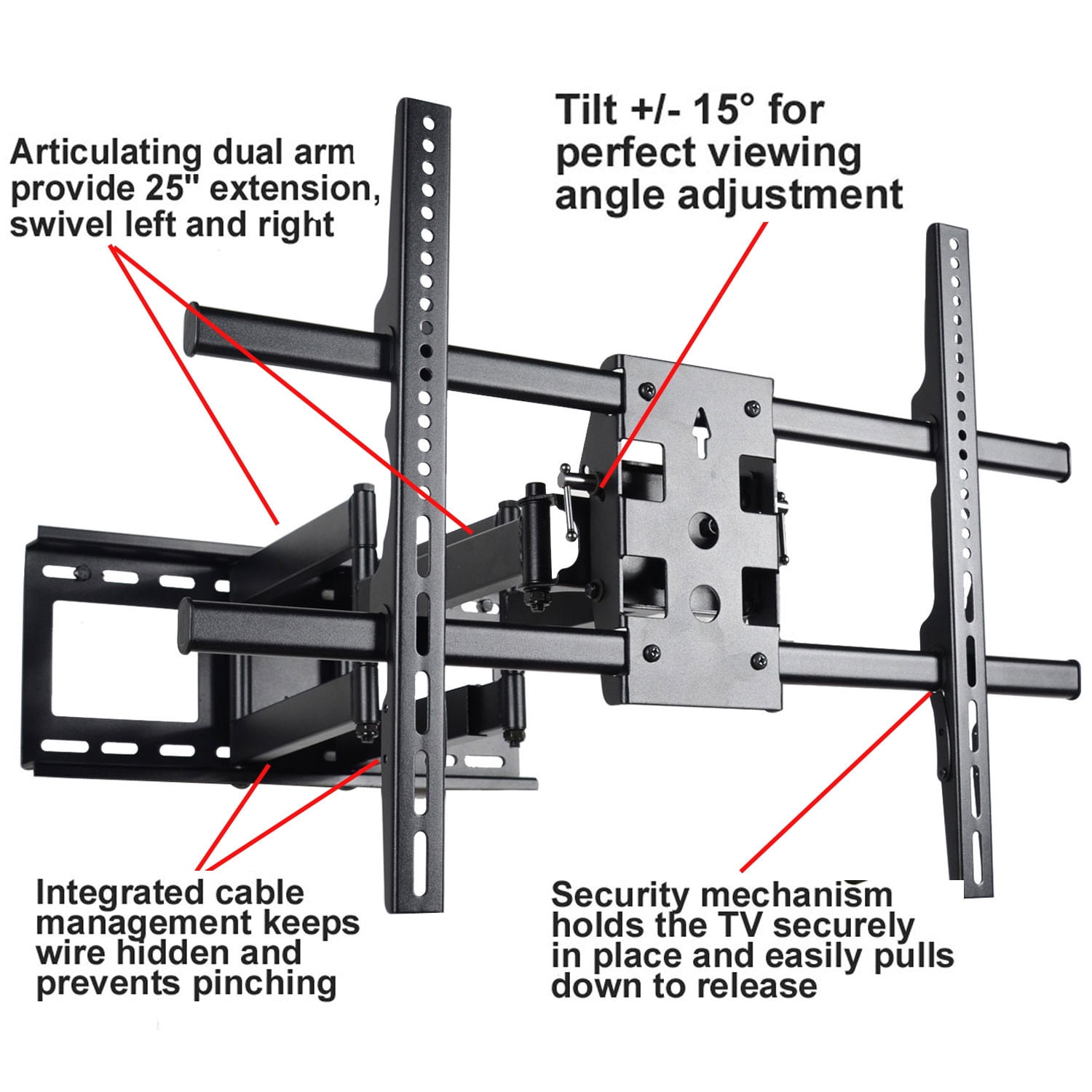

Features:
*Premium quality - heavy duty steel construction with durable powder-coated black finish
*Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
*Post-installation level adjustment allows the TV to perfectly level
*Lock and release design on arms secure the display in position for additional security
*Integrated cable management design on articulating arm keep wires out of the way
*Nesting arm design allows display to be folded parallel to wall to save place

Specification:
*Fits most 39 - 70 inch LED LCD Plasma TV displays, some LED up to 80 inch (Please check VESA and weight)

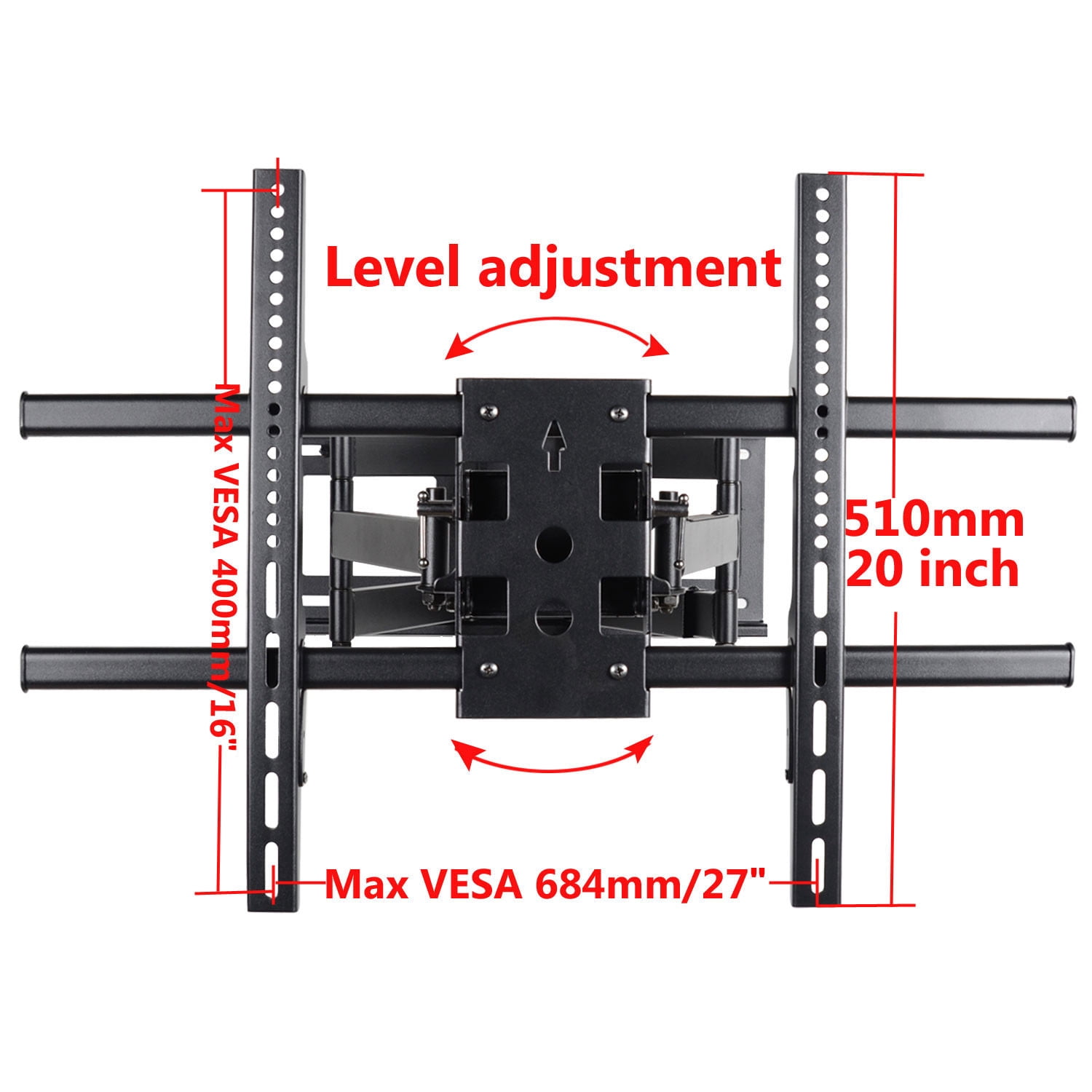

*Fits VESA mounting hole patterns 684x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-684mm wide and 100-400mm high
*Loading capacity up to 165lbs/75kg
*Adjustable 15 degrees tilt forward or backward for perfect viewing angle
*Rotate 6 degrees for level adjustment
*Swivel up to 160 degrees left and right for comfortable view angle in different positions (depending on TV size)
*Extension & Depth: the mount pulls out up to 25 inch from the wall or folds parallel to the wall less than 4 inch to save space
*Fits 16 inch apart wood studs or any stud size up to 17.8 inch apart
*Wall plate dimension: 490x213mm (19"x8.4")
*Warning: This mount does not fit 65" or above TVs which were manufactured before 2013

Package contents:
TV wall mount, 10ft HDMI cable, standard mounting hardware, user manual

Please check whether the mount is suitable for your TV:

Please check the weight of your TV; it must be less than 165 lbs.

Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 27", height is within 16", then the mount will work perfect for you.

The width of your TV should be at least 32". Otherwise the mount is too wide to hide behind your TV.

Description:
The VideoSecu articulating heavy duty TV wall mount fits most 39-70" LED LCD Plasma flat panel screen, some LED up to 80" with VESA mounting hole patterns up to 684x400mm. This TV mount is constructed with thick high grade steel providing security and stability. Adjustable tilt, swivel, rotate and extension place your TV in multiple viewing angles. The lock and release design secures the TV into place for additional security and offers convenient installation. The rectangle cable management covers on the arm keeps the wire concealed and prevent pinching.

This mount fits following TV as well as other brands, some TV that may not be listed:

LG: OLED65B6P
Vizio: D60n-E3; E60-E3; E60u-D3; M60-D1; D65-D2; D65u-D2; E65-E0; E65u-D3; M65-D0; P65-C1; D70-D3; E70-E3; E70u-D3; M70-D3; P75-C1; M80-D3

Screen size	70
Max load	165 lb
Mount pattern	600 x 400, 400 x 400, 600 x 300, 400 x 300, 600 x 200, 400 x 200, 300 x 300, 600 x 100, 400 x 100, 300 x 200, 200 x 200, 300 x 100, 200 x 100
Mount type	Wall Mount
Tv & monitor mount type	Full-Motion TV Mount
Minimum screen size	39"
Material	Steel
Brand	VideoSecu
Color	Black
Finish	Powder-coated
Maximum depth	25 in
Accessories	10ft HDMI cable,Standard mounting hardware,User manual
Has written warranty	No
Retail packaging	Kit
Model	WA-W2M-MW380B2
